Piston Accumulator

Core Definitio et Structura
Piston accumulator pertinet ad categoriam accumulantium hydraulically separatim. Hoc maxime consistit in his componentibus:
1. Praecipua structura: Includes cylindricum (cameratum oleum), piston, thalamum gasi et pileos finis. Piston intra cylindrum sita est, fluidum hydraulicum a camera gasi (parte superiori) separans.
2. Systema signandi: Sigilla alta praecisio ad utramque partem pistonis installantur ne gas in fluidum hydraulicum defluant, ita munditiam fluidi hydraulici conservantes.
3. Valvulae temperantiae: Typice valvulae praecursoris et valvae prae- ceptio instructae ad gasi compressum notantes et fluxum fluidi hydraulici moderantur.

Principium opus
Processus operarius piston accumulatoris similis est ac "fontis" gigantis;
1. Energy Repono Scaena: Cum pressio in systemate hydraulica augetur (supra praeiudicium pressionis gasi), liquor hydraulicus accumulatorem per valvulam perscriptio intrat, piston sursum impellens et gas in parte superiore comprimens. Sicut volumen gas decrescit, industria reponitur.
2. Energy Remissionis Tempus: Cum ratio additae industriae hydraulicae indiget (pressurae guttae), compressus gas celeriter dilatat, piston propellens deorsum. Motus pronus pistonis humorem hydrauticum in systema reducere cogit, energiam solvens.

Nota iussis
1. For example: Nominal pressure: 31.5MPa. Diameter interior testae (mm): 180mm, volumen nominale: 20L, portus hydraulica: staminea; stamina genus masculinum, medium: oleum hydraulicum; exemplar exemplar typicum pro piston accumulatoris esset: HXQ-A-20/31.5-L-Y-180.
2. Ad postulationem specialem accumulatoris pistionis, pete nobis contactum.
3. Reservamus ius consilio retractandi.

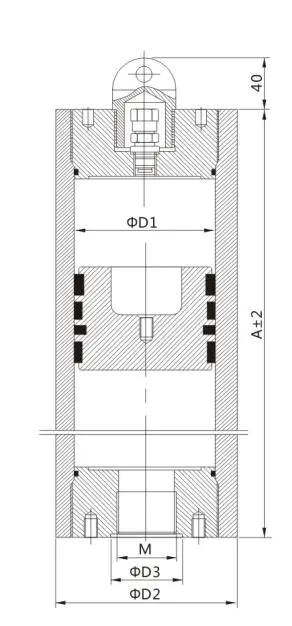

Exemplar Code et Location

	Exemplar Code	Nominal Volume (L)	ΦD1 (mm)	ΦD2 (mm)	A (mm)	Operans licita Pressura (MPa)	ΦD3 (mm)	M	Pondus (kg)
	HXQ-A-0.5/※-L-Y-80	0.5	80	98	275	10~31.5	35	M27×2	10
	HXQ-A-1/※-L-Y-80	1	80	98	375	10~31.5	35	M27×2	12
	HXQ-A-2/※-L-Y-80	2	80	98	575	10~31.5	35	M27×2	16
	HXQ-A-2.5/※-L-Y-100	2.5	100	126	500	10~31.5	50	M42×2	26
	HXQ-A-5/※-L-Y-80	5	100	126	820	10~31.5	50	M42×2	38
	HXQ-A-7.5/※-L-Y-100	7.5	100	126	1140	10~31.5	50	M42×2	49
	HXQ-A-2/※-L-Y-125	2	125	155	360	10~31.5	50	M42×2	34
	HXQ-A-5/※-L-Y-125	5	125	155	600	10~31.5	50	M42×2	49
	HXQ-A-15/※-L-Y-125	15	125	155	1415	10~31.5	50	M42×2	99
	HXQ-A-6/※-L-Y-150	6	150	180	555	10~31.5	60	M48×2	52
	HXQ-A-20/※-L-Y-150	20	150	180	1345	10~31.5	60	M48×2	100
	HXQ-A-32/※-L-Y-150	32	150	180	2025	10~31.5	60	M48×2	142
	HXQ-A-10/※-L-Y-180	10	180	216	655	10~31.5	70	M60×2	93
	HXQ-A-20/※-L-Y-180	20	180	216	1050	10~31.5	70	M60×2	128
	HXQ-A-L/※-L-Y-180	50	180	216	2225	10~31.5	70	M60×2	231
	HXQ-A-20/※-L-Y-200	20	200	235	925	10~31.5	70	M60×2	136
	HXQ-A-40/※-L-Y-200	40	200	235	1565	10~31.5	70	M60×2	196
	HXQ-A-80/※-L-Y-200	80	200	235	2835	10~31.5	70	M60×2	316
	HXQ-A-L/※-L-Y-250	50	250	290	1345	10~31.5	80	M72×2	256
	HXQ-A-80/※-L-Y-250	80	250	290	1960	10~31.5	80	M72×2	338
	HXQ-A-C/※-L-Y-250	100	250	290	2360	10~31.5	80	M72×2	390
	HXQ-A-125/※-L-Y-250	120	250	290	2775	10~31.5	80	M72×2	446
	HXQ-A-C/※-L-Y-350	100	350	406	1530	10~31.5	80	M72×2	560
	HXQ-A-120/※-L-Y-350	120	350	406	1740	10~31.5	80	M72×2	610
	HXQ-A-180/※-L-Y-350	180	350	406	2360	10~31.5	80	M72×2	750
	HXQ-A-250/※-L-Y-350	250	350	406	3000	10~31.5	80	M72×2	900
