Home / Products / Accumulator / Vesicae Accumulator / PED Type vesicae Accumulator
  • PED Type vesicae Accumulator
  • PED Type vesicae Accumulator
Vesicae Accumulator

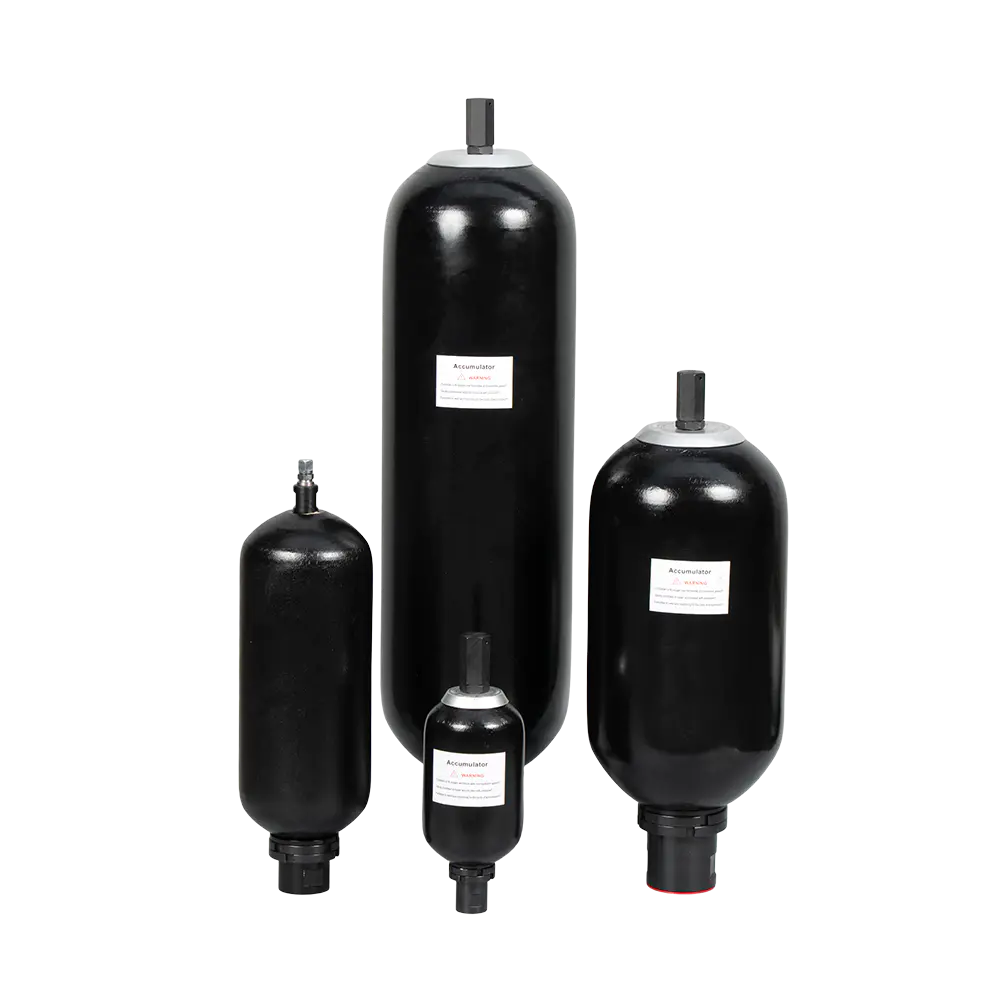

PED Type vesicae Accumulator

Vesicae genus PED accumulatores referunt ad coacervatores vesicae quae obtemperant cum UE PED Directivo (2014/68/EU). Hi accumulatores typice constant e ferro crustae et vesicae elasticae internae (plerumque e materia rubber aut polymerum facta). Vesica spatium internum dividit in fluidum thalamum implentem et cubiculum gasi praepressum (ut nitrogen). Dissimiles ordinarii accumulatores, debent certificationem tertiam partium independentium subire (Corpus Notificatum) et CE signum ferre, eorum obsequia cum Ordinationibus securitatibus EU approbantes.

Peto a Quote >
  • PED Type vesicae Accumulator
  • PED Type vesicae Accumulator
PREV：NXQ Series Vesicae AccumulatorDEINDE：Diver Vesicae Accumulator

Features
1. Structura: Bottom-ostium, top-apertura, structura.
2. Modus figendi: Fibulae fixa seu subsidia.
3. Modus instruitur: Verticalis installation praeponitur.
4. Opus medium: oleum HYDRAULICUM, EMULSIO.
5. Temperatura designatio: -10°C ad 70°C.
6. Vesica implens gas: Nitrogen.

Productum
Descriptio

Possumus designare et evolvere secundum necessitates clientium nostrorum ut cum exigentiis diversorum clientium.

Exemplar Vocabulorum

1. Europae Standard Accumulators
2. Nominal Volume (L)
3. Nominal Pressure(MPa)：34.5MPa

Product Specifications

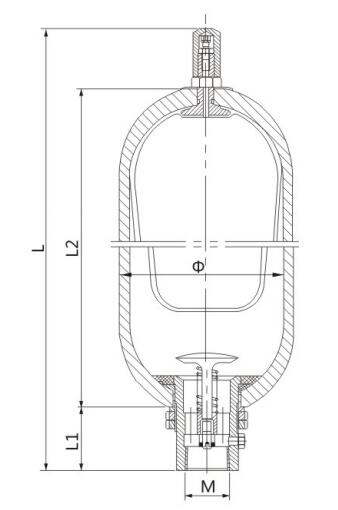

Exemplar Code et Location

Solum Repaic Construction Top Repaic Construction

Exemplar Code Pressura (MPa) Volumen (L.) Pondus (kg) Magnitudo Φ (mm) Magnitudo L1 (mm) Magnitudo L2 (mm) Magnitudo L (mm) Magnitudo M
PED1/34.5 34.5 1 5.5 Φ114 47 197 302 G3/4
PED2/34.5 34.5 2 6 Φ114 47 315 445 G3/4
PED4/34.5 34.5 4 11 Φ168 63 315 447 G1¹/₄
PED6/34.5 34.5 6 15.5 Φ168 63 410 532 G1¹/₄
PED10/34.5 34.5 10 37 Φ229 86 427 551 G2
PED15/34.5 34.5 15 49 Φ229 86 582 726 G2
PED20/34.5 34.5 20 61 Φ229 86 737 881 G2
PED24/34.5 34.5 24 70 Φ229 86 857 1001 G2
PED32/34.5 34.5 32 95 Φ229 86 1107 1257 G2
PED40/34.5 34.5 40 105 Φ229 86 1354 1498 G2
PED50/34.5 34.5 50 117 Φ229 86 1663 1807 G2
