AQF Safety Ball Valvulae

AQF Salutis Ball Valvulae praesertim in accumulatoribus vesicae hydraulicae adhibentur ut salus, intermissio, fluxus, accessiones exonerantur. Valvae salus conservat valorem pressionis systematis. Cum pressio valorem statutum excedit, valvae salutis aperit ne ratio oneris. Maxime essentialis est accumulatores in systematibus clausis, efficaciter impedire damnum quod subito augetur in externo onere.

Core eius munus est accumulatorem et totum ambitum hydraulicum tueri, fluxum fluidi hydraulici moderando, ne systema oneris et exonerare possit.

Features: Foedus compages, parvae magnitudinis, tutae et opportunae, operationes simplices.

Peto a Quote >

PREV：Nulla prior productum DEINDE：Proximum productum non

Principalis functiones et opus principium

1. Pressura Occasus et Subsidio: Valvula internam ver seu gubernatorem structuram valvae habet. Cum pressio systematis hydraulicae valorem usoris statuto salutis excedit (v.g., 31.5MPa), valvae automatice aperit, celeriter fluidum hydraulicum solvens ne adhuc pressionis oriatur, quae ad explosionem vel rupturam pipeline accumulatorem ducere posset.

2. Salus Flux Interruptio: Actus ut "porta" inter accumulatorem et systema. In casu subito summus onus ictum in systemate, valvae securitatis cito ambitum olei amputare possunt, apparatum a damno tutando.

3. Unloading et Oleum INCILE: Praeter munus tutelae, communiter etiam adhibetur ut valvae olei exhauriendi, ut oleum e accumulatore ad victum vel subrogandum cito exhauriat.

Productum
Descriptio

Possumus designare et evolvere secundum necessitates clientium nostrorum ut cum exigentiis diversorum clientium.

Exemplar Vocabulorum

1. Salutis pila valvae

2. L: Recta per nexum lina

LS: Rectus angulus ~~

LW: Tres-modo~~

3. Nominalis diameter: 20, 25, 32, 40mm

4. nominatim pressura:

H1--10MPa

H2--20MPa

H3--31.5MPa

5 genus structurae: Recta per

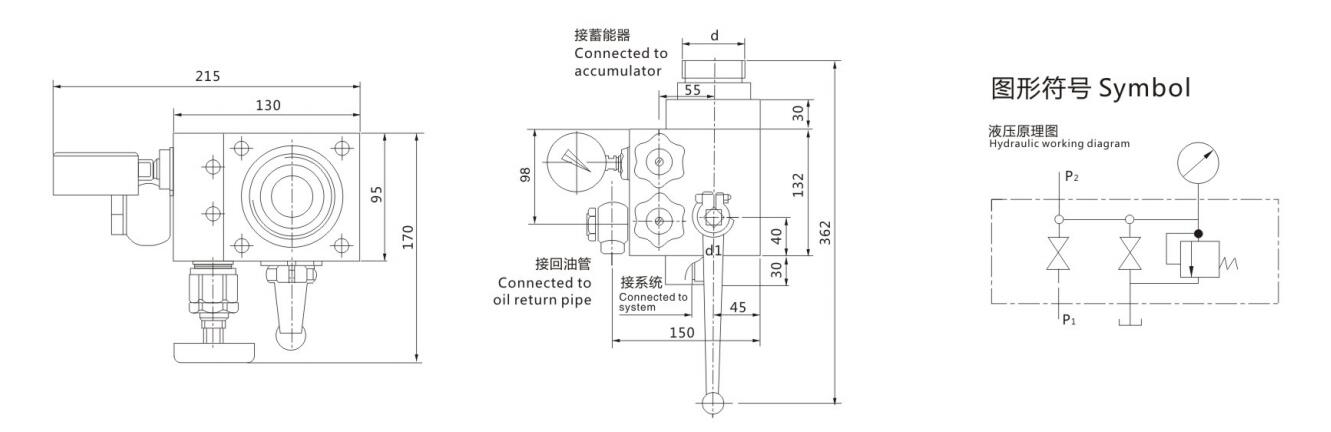

Product Specifications

Super Dimensione

Exemplar	Fluxus nominalis (valvae Salutis) (L/min)	Fluxus nominalis (valvae Ball) (L/min)	Connection size d (mm)	Connection size d1 (mm)	Matching accumulator (L.)
AQF-L25H-A	40	100	M42×2 vel M27×2	M33×2	1.6~10
AQF-LS25H※-A	40	100	M42×2 vel M27×2	M33×2	1.6~10
AQF-LW25H-A	40	100	M42×2 vel M27×2	M33×2	1.6~10
AQF-L32H※-A	63	160	M60×2 vel M42×2	M42×2	10~100
AQF-LS32H※-A	63	160	M60×2 vel M42×2	M42×2	10~100
AQF-LW32H※-A	63	160	M60×2 vel M42×2	M42×2	10~100
AQF-L40H※-A	100	250	M72×2 vel M60×2	M48×2	10~100
AQF-LS40H※-A	100	250	M72×2 vel M60×2	M48×2	10~100
AQF-LW40H※-A	100	250	M72×2 vel M60×2	M48×2	10~100
